Poolweb #856-020

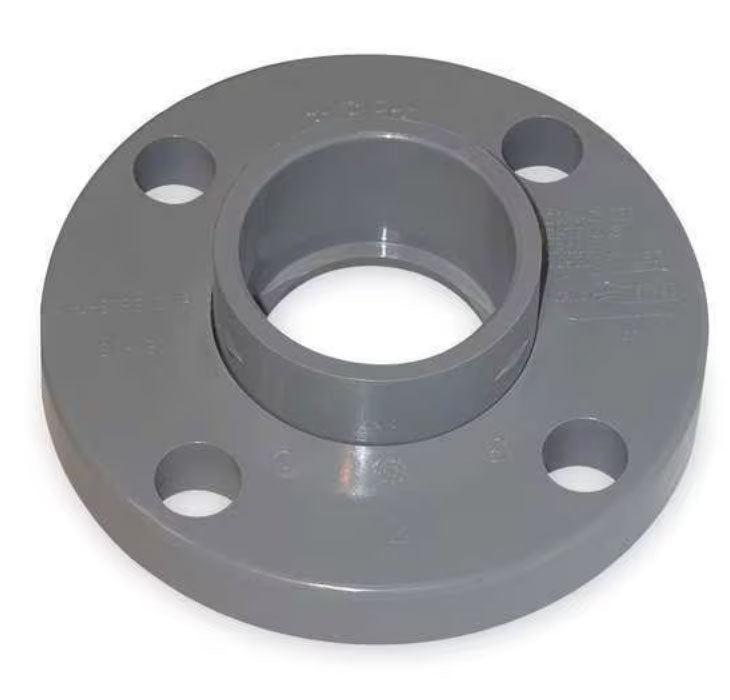

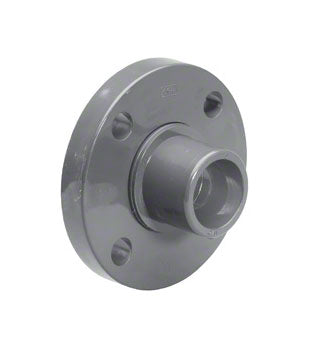

Schedule 80 Van Stone Flange - 2 Inch Spigot
Allow 10-14 Days to Ship
Shipping Options
- Standard Shipping, $7.99 Get it by
- 2 Day Shipping, Get it by
- 1 Day Shipping, Get it by
Shopper Protection
- This item is backed by a 30 day Return Policy
- This item is protected under the Poolweb Guarantee
Product Information
Additional Resources
- Data Sheet (pdf)
- Installation Instructions (pdf)
Product Description
This is a Schedule 80 Van Stone Flange with a 2 inch Spigot connection. The Schedule 80 Van Stone flanges are constructed of Rigid Poly (Vinyl Chloride) (PVC) Compounds and Chlorinated Poly Vinyl Chloride (CPVC) Compounds. Schedule 80 fittings are manufactured to ASTM D 2467 standards. This PVC flange complies with the perimeters specified in ANSI B16.5 for bolt patterns. Maximum pressure rating is 150 PSI at 73 degrees F with a maximum operating temperature of 140 degrees F.
A Van Stone flange is a two-piece flange with a rotating, loose ring that makes bolt alignment simple. It makes disassembly easier than a one-piece flange. The fasteners can be tightened or loosened without moving or twisting the attached pipes. These fittings are used in a variety of PVC applications around the world and are molded with a smooth interior wall resulting in less pressure loss and higher volume than conventional metal fittings.
Gaskets and bolts sold separately.
Product Features
- 4 Holes
- Max Pressure: 150 PSI
- Max Operating Temp: 140 degrees F
- ANSI 150 Class according to ANSI B16.5
- Certified NSF 61 and ANSI 372
Technical Specifications
| Product Category | Flanges and Gaskets |
| Poolweb Item # | 856-020 |
| Brand | Poolweb.com |
| Shipping Weight | 0.72 lb |
